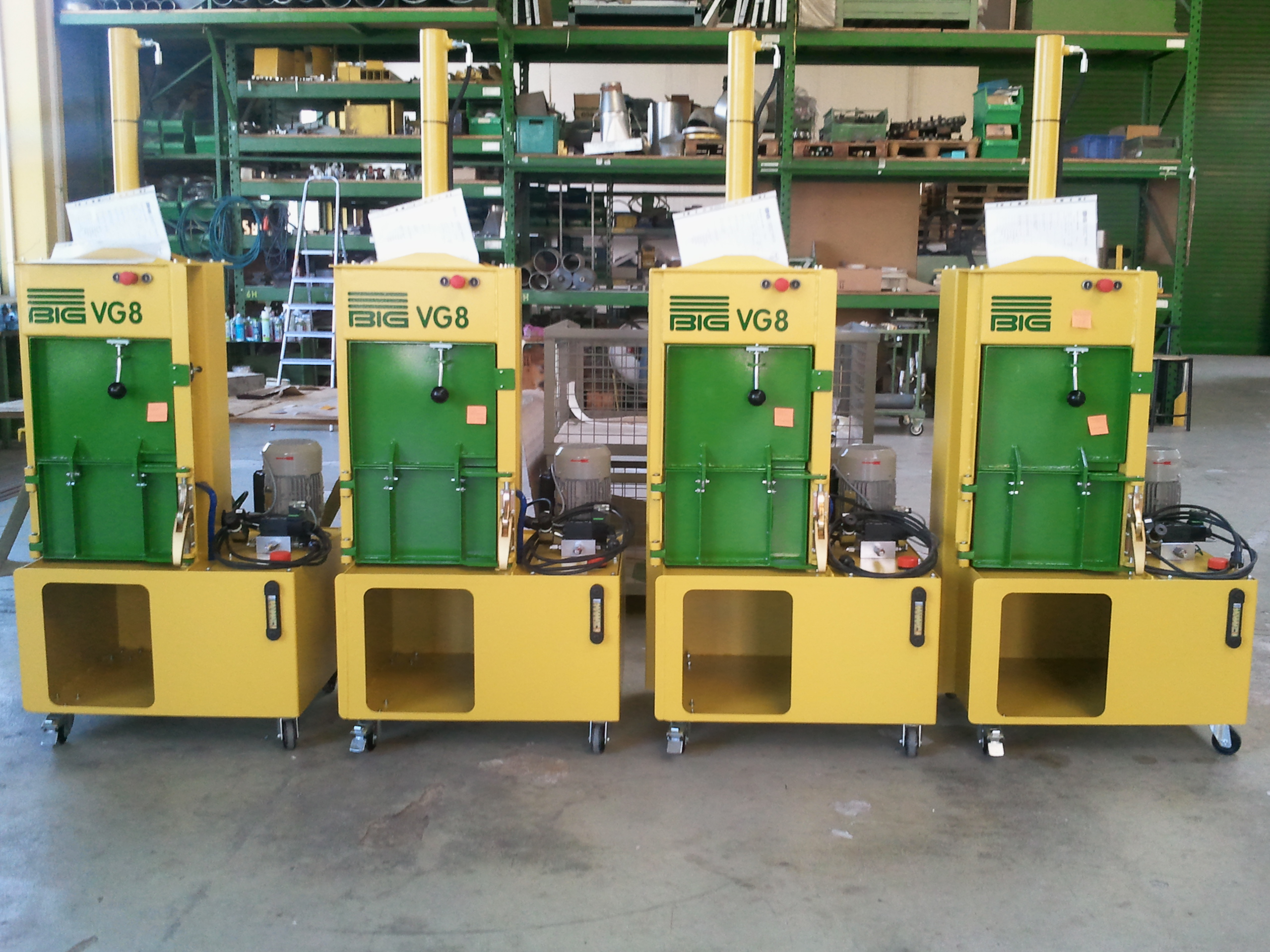

Can Crusher VG8

Empty cans and containers up to 30 l

The Can Crusher is easy to operate and has in ergonomic height a load door where the cans or containers are filled into the compaction chamber. The press ram compacts the various cans/containers into flat square packages, which can be removed after the completion of the compaction process and can be deposited for further disposal. As there may still be fluids in the pressed material, it is possible to place a collecting container in the base of the Can Crusher. Thus, residual fluids can be collected during the coampaction process. The wide, stable undercarriage ensures mobile use of the Can Crusher at the desired location.

Additional option: EX-protection (with automatic handling).

Technical Data
Compaction pressure approx. 80 kN
Feeding opening W x H approx. 400 x 350/600 mm
Compaction chamber B x W x H approx. 400 x 400 x 600 mm
Cycle time approx. 30 sec
Stroke approx. 600 mm
Drive 1,5 kW, 230 V, 50 Hz
External dimensions approx. 790 x 620 x 1980 mm
Weight approx. 200 kg

Additional equipment:
Ex protection version, stainless steel stainless steel, weatherproof.
The technical data is subject to cange.
